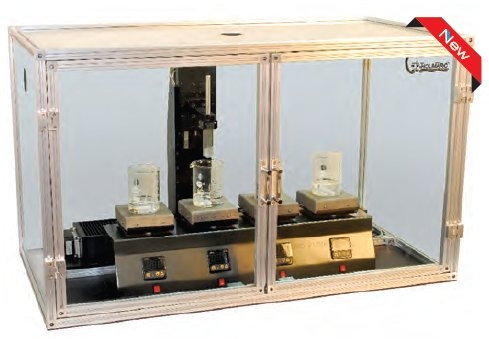

    Silar Coating System With Magnetic Stirrer

    Model No: HO-TH-03B


    Holmarc¡¯s SILAR Coating System has been designed to automate the entire process to avoid operator fatigue and errors associated with it. In manual SILAR process, the operator has to perform hundreds of repetitive dipping into the solution and water. It is very difficult to control
    dip duration and number of dips in a manual process which can last hours. In the automated unit, the operator need just to clamp the substrate into the holder and program the controller with required dip cycles and duration.


    In this technique thin film is deposited on glass substrate following a chemical technique called successive ion layer adsorption and reaction (SILAR). The technique involves multiple dipping of the substrate in a given solution and deionized water, temperature of both can vary from case
    to case.


    This model has a magnetic stirrers which can be used to stir the solution. The rotation speed can be controlled from 1 - 1000 rpm. The dipping speed, dip duration, retrieval speed and dry duration can be set for each beaker. Each hot plate can be set at different temperatures. The temperature can be set up to 200¡ÆC from ambient




    Specification


    Actuator

    : Stepper motor

    Drive mechanism

    : Lead screw

    Dip duration

    : 0 - 99 seconds / minutes / hours

    Number of dips

    : 1 - 999

    Hot plate temperature

    : Ambient to 200¡ÆC

    Stirrer speed

    : 1 -1000 rpm

    PC connectivity

    : Serial port (RS 232)

    Stroke length

    : 75mm

    Power input

    : 230V, 50Hz
