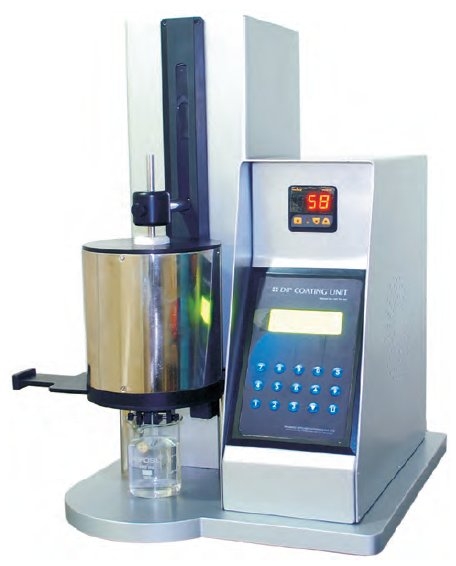

    Dip Coating Unit with hot chamber

     Model : HO-TH-02


    In Holmarc’s Dip Coating Unit (HO-TH-02), the substrate is dipped in the
    solution and then withdrawn into a heating chamber. Temperature of the
    chamber can be controlled and fixed up to 75°C from ambient. All other
    features are same as that of Model : HO-TH-01.
    The system has a user friendly front panel with key board and LCD display. It
    can as well be controlled through a computer. Dip duration, dip speed, baking
    duration, withdrawal speed etc. are programable features. Servo motor is
    used as actuator for vibration free dipping and withdrawal.
    The device is designed and manufactured as table top device with entire
    electronics and servo motor housed in a compact unit. A number of substrate
    can be held to the holder at the same time. Height of the substrate holder can
    be adjusted with respect to the level of the solution during the experiment.

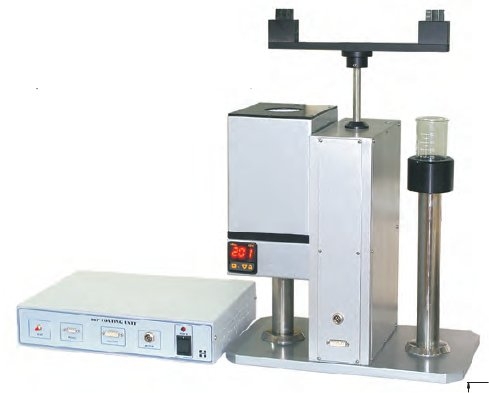

    HO-TH-01-F

    This device can be customized as per requirement.






    Specifications

    Actuator : Servo motor
    Drive mechanism : Lead screw
    Speed control : 6 step variable speed
    Power input : 230V, 50Hz
    PC connectivity : Serial port (RS 232)
    Stroke length max. : 150mm
    Drawing speed min. : 18 micron/sec
    Drawing speed max. : 9000 micron/sec
    Program memory : 5 programs
    Dimension : 630 x 348 x 416 mm
    Max. power consumption : 460 Watts.
